Series 1804 - 1808 Catalog

Welding Reel Series 1804 - 1808

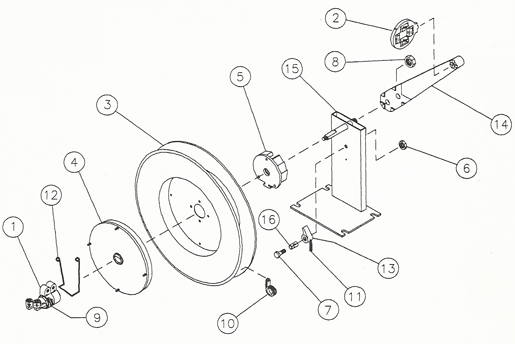

Parts List
* MODEL NUMBER MUST BE KNOWN TO CLARIFY PART NUMBER USE HOSE & CORD CATALOG FOR REPLACEMENTS.

NO.	PART#	DESCRIPTION	MODEL
1	SA-06	SWIVEL JOINT - WELDING	ALL
2	SA-13	HOSE GUIDE with ROLLERS	ALL
3*	SA-55	REEL SPOOL w/HUB 16"	1804
	SA-56	REEL SPOOL w/HUB 18"	1805, 1806
	SA-57	REEL SPOOL w/HUB 20"	1807, 1808
4*	SS301	MOTOR SPRING AND ARBOR ASSEMBLY	1804, 1805
	SS-311		1806
	SS-341		1807, 1808
5	F-55-20	BEARING HUB	ALL
6	006-01	3/8 KEPS NUT	ALL
7	006-07	3/8 x 1 1/2 CS	ALL
8	008-01	5/8-11 JAM NUT	ALL
9	K21-04	O-RING KIT	WELDING SWIVEL
10	023-03	HOSE CLAMP	ALL
11	031-01	LOCKING CAM SPRING	ALL
12	031-02	WELDING TEE SPRING	ALL
13	055-17	LOCKING CAM	ALL
14	055-18	ROLLER GUIDE ARM	ALL
15*	071-12	MOUNTING BASE 10	1804
15*	071-13	MOUNTING BASE 11	1805, 1806, 1807, 1808
16	091-02	SPACER	ALL

Welding Reel Series 1804 - 1808
