Series 1809 - 1811 Catalog

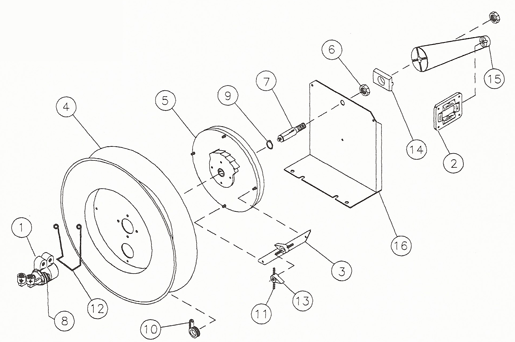

Welding Reel Series 1809 - 1811

Parts List
* MODEL NUMBER MUST BE KNOWN TO CLARIFY PART NUMBER USE HOSE & CORD CATALOG FOR REPLACEMENTS.

NO.	PART#	DESCRIPTION	MODEL
1	SA-06	SWIVEL JOINT - WELDING	ALL
2	SA-12	HOSE GUIDE with ROLLERS	ALL
3	SA-23	LOCKING BAR ASSEMBLY	ALL
4	SA-59	REEL SPOOL 22"	ALL
5*	SS-442	MOTOR SPRING AND ARBOR ASSEMBLY	1809
	SS-462		1810
	SS-472		1811
6	009-01	3/4-10 HEX NUT	ALL
7	018-03	AXLE	ALL
8	K21-04	O-RING KIT	WELDING SWIVEL
9	022-04	RETAINING RING	ALL
10	023-02	HOSE CLAMP	ALL
11	031-01	LOCKING CAM SPRING	ALL
12	031-02	WELDING TEE SPRING	ALL
13	055-12	LOCKING CAM	ALL
14	055-13	GUIDE ARM LOCK	ALL
15	055-14	ROLLER GUIDE ARM	ALL
16	071-10	MOUNTING BASE LARGE	ALL

Welding Reel Series 1809 - 1811
